Description

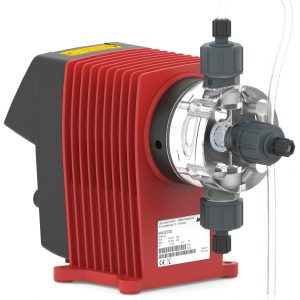

Step-motor-driven diaphragm dosing pump
Product: MEMDOS SMART
Type: LD
Flow rate at max. pressure: 20.4 l/h
Delivery pressure max.: 5 bar
Capacity adjustment: Stroke frequency adjustable: 0 – 150 strokes/min
Material dosing head and valves: PVC
Control unit: 110 – 240 V +5/-10 %, 50/60 Hz
Electrical connection: 1.8 m mains cable with plug, Europe (for 230 V AC)
Suction valve DN4: Double-ball ceramic/PVDF/FPM (ball/seat/gasket)
Discharge valve DN4: Double-ball ceramic/PVDF/FPM (ball/seat/gasket)
Material suction connection: PVC
Suction connection: Hose clamp connection set 4/6, 6/9 and 6/12
Material discharge connection: PVC
Discharge connection: Hose clamp connection set 4/6, 6/9 and 6/12
Dosing head arrangement: Floor mounting
Functions
Stroke frequency can be precisely adjusted via the keyboard
Graphic display
Pulse input (increase and reduction)
Level input with early warning and main alarm
Release input for external start/stop
