Description

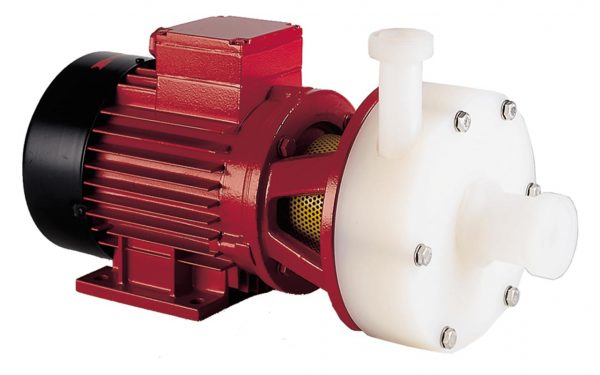

Motor pump MB
Conveying chemicals safely
The MB motor pump is a single-stage, normal-priming centrifugal pump in block design with horizontal axis. The MB pump has an open impeller for low-viscosity, acid and alkaline solutions with low solid matter content. The pump head assembly consists of high-quality plastic materials with hydraulically efficient spiral casing.
- Single-stage, normal-priming pumps with horizontal axis
- Open impeller
- Pump head made of high-quality thick-walled plastic material
- Corrosion-resistant
- Wetted-end parts made of highly resistant material
- Special varnish, stainless steel pump shaft with shaft protection sleeve
- Shaft seals single or double-acting
- Vibrationless operation
Chemical Motor Pump Unit horizontal
Size: MB 25-140
Max. diameter impeller: 142
Material spiral casing and impeller: PP
Material gaskets: FPM
Material drive shaft: SS
Material shaft protection sleeve: Carbon impregnated
Mechanical seal: B2i M single-acting, inside
Material spring/slide ring/counter ring: Hastelloy C4/SiC/SiC
Suction connection: Threaded connection G2 M
Discharge connection: Threaded connection G1 1/2 M
Electric drive: 2.2 kW 50 Hz – 2.55 kW 60 Hz, IP55, ISO-F, IE3
Motor speed: 2-pole (2900 rpm @ 50 Hz – 3480 rpm @ 60 Hz)
Nominal voltage: 230/400 V 50 Hz – 460 V Y 60 Hz
Medium data
Medium conveyed: unknown
Flow rate: —- m3/h
Delivery head: —- m water column
Concentration: —- %
Density: —- kg/dm3
Viscosity: —- mPa·s
Temperature: —- °C (—- °F)
Solids content: un
