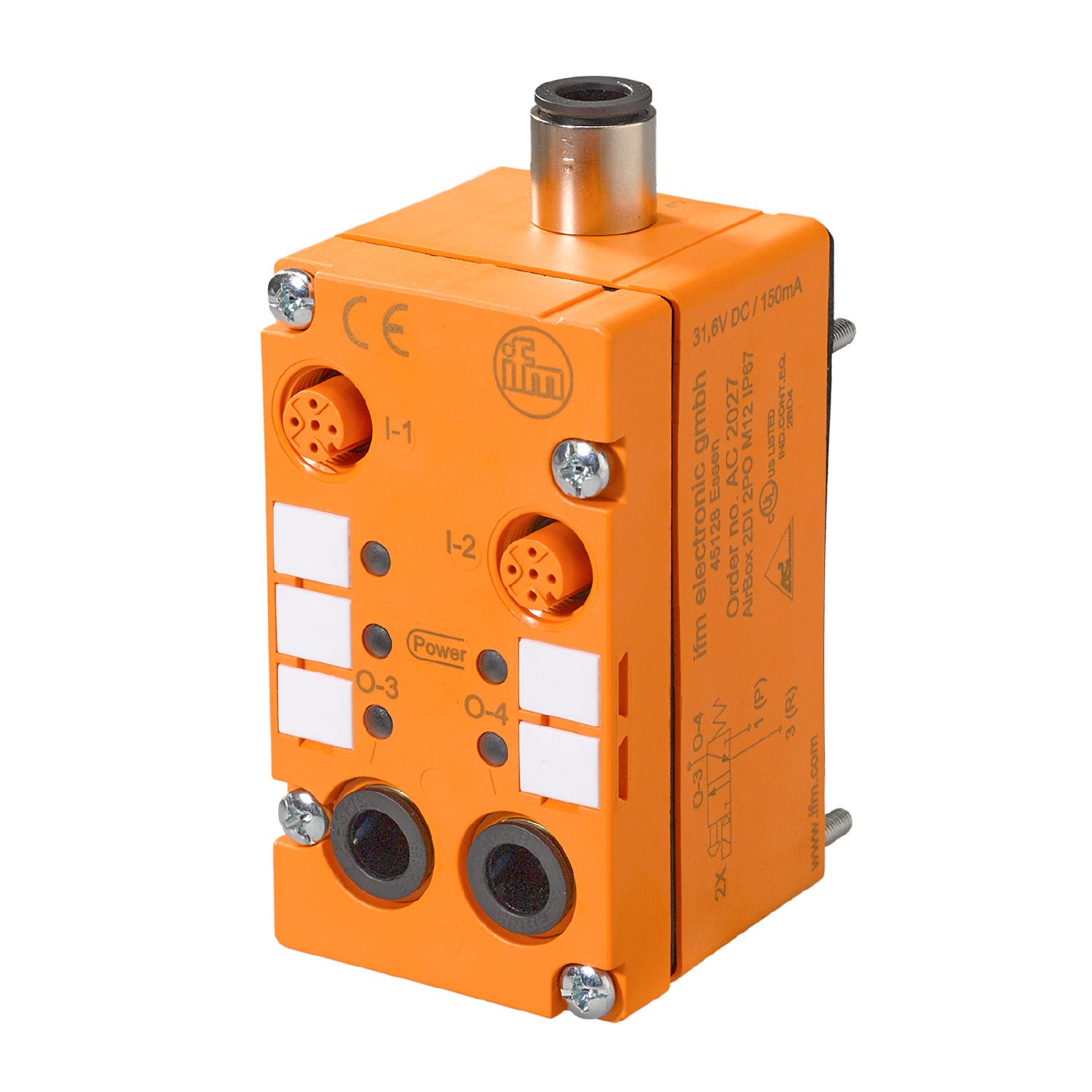

Description
| pplication | field installation |
|---|
Electrical data
| Operating voltage [V] | 26.5…31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 150 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of pneumatic outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply [V] | 20…30 |
| Max. total current rating of inputs [mA] | 100 |
| Input current High [mA] | > 3 |
| Input current Low [mA] | < 1.5 |
| Switching level high [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of pneumatic outputs | 2 |
|---|---|
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature [°C] | 0…55 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
|---|
