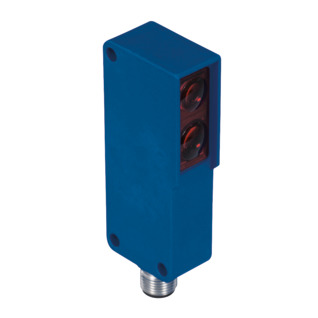

These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
Optical Data
Range : 300 mm
Adjustable Range : 60…300 mm
Switching Hysteresis : < 5 %
Light Source : Red Light
Service Life (T = +25 °C) : 100000 h
Max. Ambient Light : 10000 Lux
Light Spot Diameter : see Table 1
Electrical Data
Supply Voltage : 10…30 V DC
Current Consumption (Ub = 24 V) : 30 mA
Switching Frequency : 1 kHz
Response Time : 500 µs
Temperature Drift : < 5 %
Temperature Range : -25…60 °C
Switching Output Voltage Drop : < 2,5 V
PNP Switching Output/Switching Current : 200 mA
Short Circuit Protection : yes
Reverse Polarity Protection : yes
Overload Protection : yes
Protection Class : III
Mechanical Data
Setting Method : Potentiometer
Housing Material : Plastic
Degree of Protection : IP67
Connection : M12 × 1; 4-pin
Safety-relevant Data
MTTFd (EN ISO 13849-1) : 2441,53 a
Output
PNP NO/NC antivalent : yes
