Description

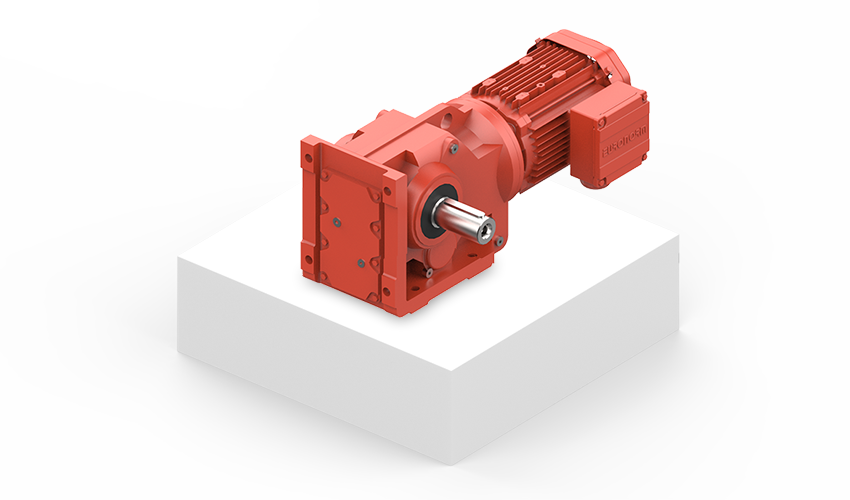

The Euronorm helical bevel gearmotor type JRT K series are competitively priced, high quality and assembled from stock to conform with customer’s demands.
Euronorm offers different versions of helical-bevel gearmotors, which are 1 on 1 interchangeable with SEW and other manufacturers.
The gearmotor range offers a variety of implementation options. For example, all types of geared motors can be provided with an outgoing flange and / or mounting feets. In addition, the gearmotors can be equipped with an IEC flange, hollow shaft with shrink disk, spline shafts, and more.
When a gearmotor with a very high transmission ratio is required, the gearmotor is equipped with an additional motor gearbox . This makes ratio’s of over i=10.000 possible.
In addition to the options on the gearbox itself, also many options are possible for the electric motor. They can be equiped with several types of brake (AC braking, DC braking, dual DC braking for stagecraft) encoders in many shapes and sizes, external cooling, PTC or thermal contact, back stop and more.
The quality of the gearmotors is guaranteed by producing under UNI EN ISO 9001: 2008 standards. Delivered materials are also strictly controlled and selected on their proven quality. The use of A-brand parts such as NSK bearings and oil seals from Simrit, accurately machined parts and the use of precision hardened and ground gears (grade 6) ensure a long service life, minimal noise and high efficiency.
Euronorm keeps a lot of geared motors and parts on stock. Euronorm also has their own assembly workshop and paintshop. Therefore they can ensure a quick and reliable delivery of customized gearmotors painted in various colours and coating systems
| Gear size: | 17 ~ 187 |
| Ratio: | 3 ~ 197 |
| Power: | 0,12 ~ 200 kW |
| Torque range: | 10 ~ 60.000 Nm |
| Shaft size: | 25 ~ 190 ø mm |
