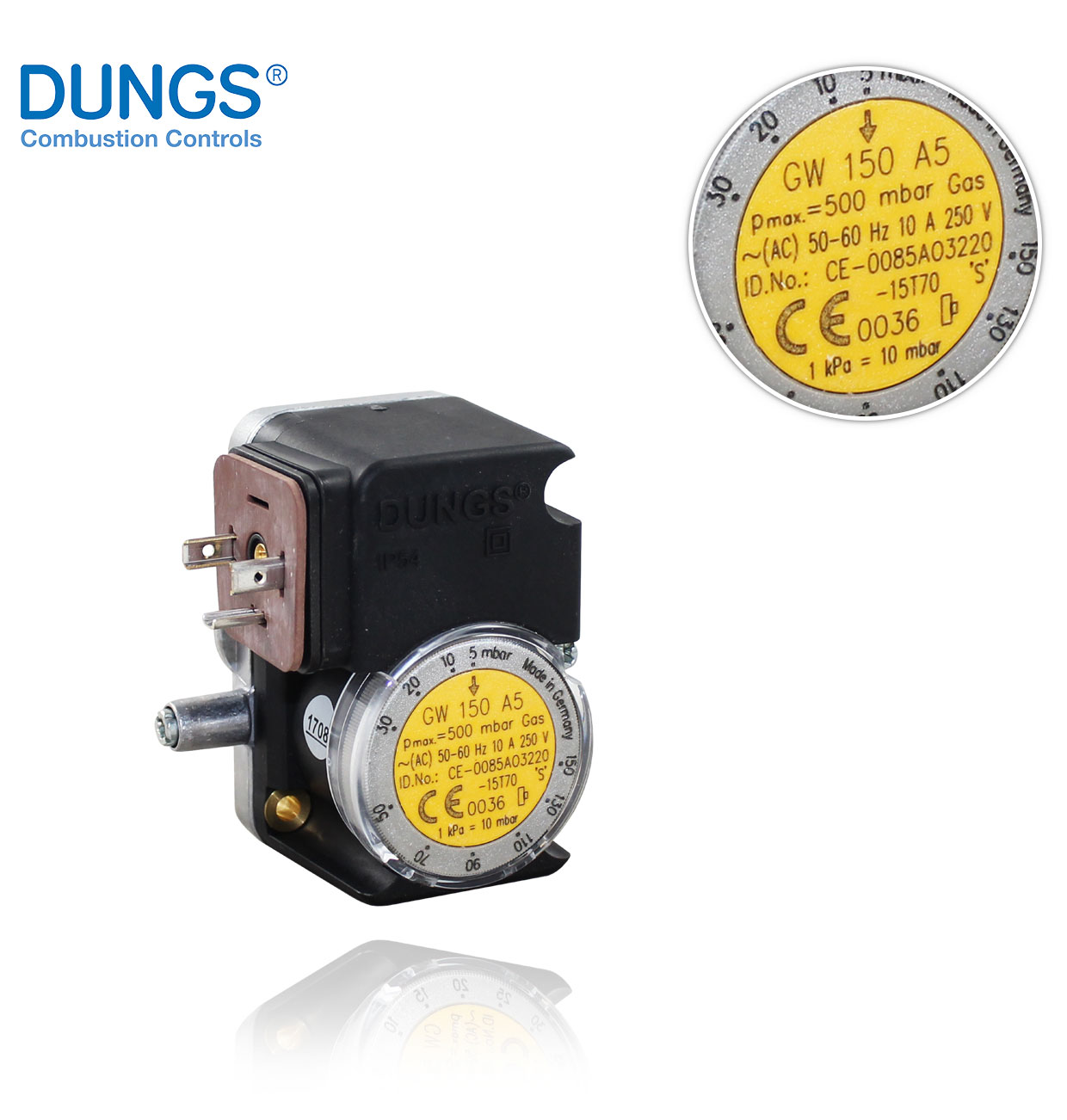

Dungs GW 150 A5 Pressure Switch – 5-150 mBar – 225940
Overview
The Dungs GW150 A5 pressure switch is a compact pressure switch that responds to pressure. If the set reference value is exceeded or undershot, the circuit is switched on/off or over.
Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
GW150 pressure switches can be set up easily using the wheel on the front to set what pressure it should switch. This can be done without using a pressure gauge, which significantly reduces the time used to get you up and running.
The Dungs GW150 A5 can be fitted to all the dungs multibloc gas valves and the DMV series either directly on the housing or by using an adapter.
Dungs GW150 A5 Pressure Switch Features
The Dungs GW150 A5 single acting pressure switch in over-pressure range, they operate without any power supply. They also have short response times during short term pressure fluctuations.
Dungs GW150 A5 Pressure Switch Features
The Dungs GW150 A5 single acting pressure switch in over-pressure range, they operate without any power supply. They also have short response times during short term pressure fluctuations.
- Max Operating Pressure: 150mbar.
- Ambient Temperature:-15 °C to +70 °C.
- IP54 as per EN60529 (IEC 529).
- Sturdy die-cast aluminium housing.
- O ring flange connection.
