ASI X766846 CWRE7-0846 Pluggable SPDT Relay with DIN Rail Mount Terminal Block Base, 6 amp, 250 VAC Max Switching, 115 VAC/DC Coil

Space-saving 6 mm wide terminal block base design
Relay is pluggable for easy replacement
Plug-in jumpers to easily connect common inputs and outputs

Description

Contact type	spdt
Mounting type	Clamp Mount,Plug Mount,Railing Mount
Brand	Automation Systems Interconnect
Contact current rating	6 Amps

About this item

Space-saving 6 mm wide terminal block base design
Relay is pluggable for easy replacement
Plug-in jumpers to easily connect common inputs and outputs

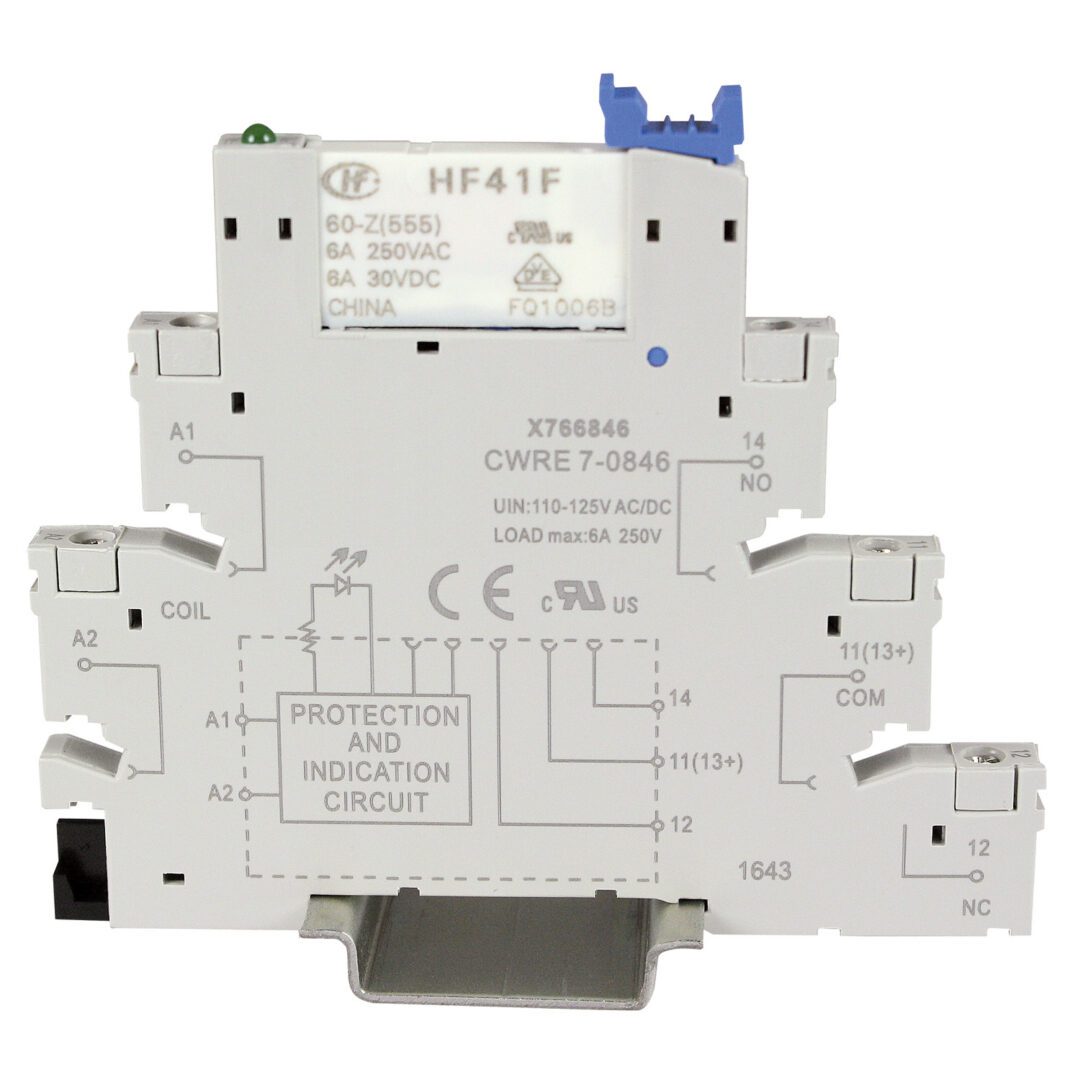

The CWRE7-0846 is a UL Listed 6 mm wide relay base with a pluggable SPDT relay rated at 6A, 250 Vac with a coil voltage of 115 Vac/dc. The base easily snaps on to the industry standard DIN rail for quick installation. An easy to follow wiring diagram is printed on the side of the terminal block relay base. The connections are made with proven screw clamp wire terminations and an actuator serves to lock the relay in place and to eject it for easy removal. The relay base is equipped with a LED for visual indication of operation.

Input rated voltage	115 Vac/dc ±10%
Current consumption	4 mA ±10%
Turn ON / OFF time	8 ms / 5 ms
Protection circuit	Free-wheel diode, Reverse polarity
Connection terminal	2.5 mm² screw
Input channels	1 pluggable
OUTPUT TECHNICAL DATA
Contact type	SPDT, 1 form C, AgSnO2
Output voltage	400 Vac max., 30 Vdc max.
Nominal current	6 A (250 Vac), 6 A (30 Vdc)
Connection type	2.5 mm² (AWG26-14), screw type
