Description
- Jumper can be used on either the Input or output side of the relay
- Convenient 20 position which can be cut to any size
- Blue insulator for visual identification of jumper location
- Push-in feature makes installation easy

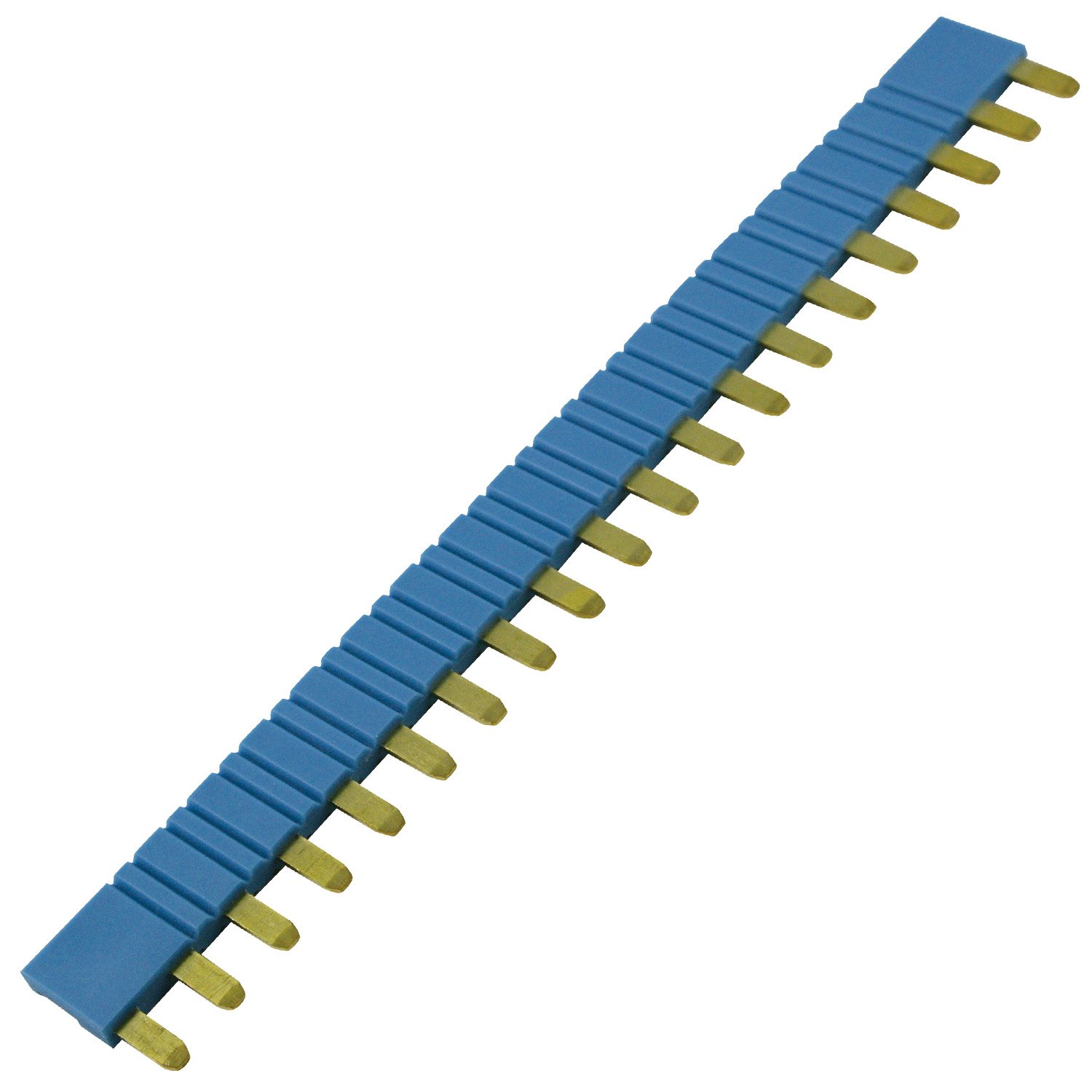

WBK7-0813 is a 20 position plug in jumper for the ASI CWRE7 pluggable relay modules. The jumper provides for easy signal distribution between relays due to its’ push-in installation design. The top of the jumper is insulated with a blue color insulation to prevent shock hazard during and after installation and to provide a visual indication as to the location. The jumper can be cut down to provide circuit connection from 2 to 20 positions.
