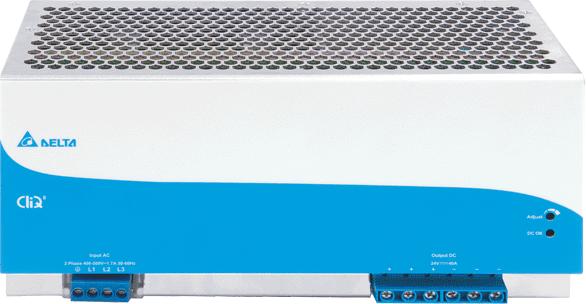

40A Power Supply DIN Rail CliQ II Series DRP024V960W3BN

Description

Output Voltage

24V

Output Power

960W

Output Current

40A

Input Voltage Range

3 x 320-600Vac

Dimensions (H x W x D)

121 x 255 x 117.3 mm

4.76” x 10.04” x 4.62”

Unit Weight

2.60 kg (5.73 lb)

Highlights & Features

• Universal AC input voltage range
• Power will not de-rate for the entire input voltage range
• Power Boost of 150% for 5 seconds
• Full corrosion resistant aluminium casing
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
• Extreme low temperature cold start at -40°C
• Conform coating on PCBAs to protect against common dust and chemical pollutants
• Certified according to IEC/EN/UL 62368-1
