Description
Communication Cable at sensor/actuator level., Number of Cores: 2, Core diameter:1.5mm², Outer sheath material: EPDM (Rubber)
Complete Electronics Part No : 2170229
Manufacturers Part No.: 2170229
Manufacturer: LAPP
Number of Conductors: 2
Conductor Size: 1.5mm²
Cable Jacket: EPDM
Description

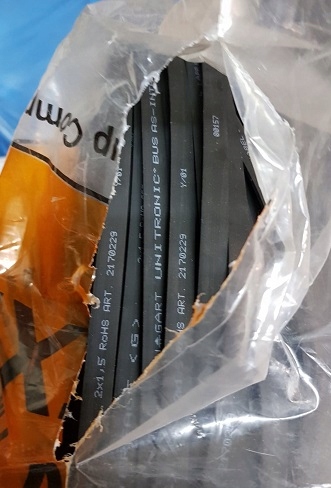

UNITRONIC BUS ASI (G) 2X1,5 BK
Communication Cable at sensor/actuator level.
- Number of Cores: 2
- Core diameter:1.5mm²
- Outer sheath material: EPDM (Rubber)
- Outer sheath colour: Black
- Temperature resistant
- Halogen Free
- Good chemical resistance
- Extra-fine wire, tinned copper strands
- Core insulation: blue and brown
- Outer sheath: Black (RAL 9005)
- Reel Length: 100M
Application Range
- Communication at sensor/actuator level
- For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
- The TPE version has an oil-resistant outer sheath. It is suitable for wet areas, in particular in conjunction with water-soluble cooling lubricants.
- Sensor-/actuator wiring
Product Features
- Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
- The conductor is contacted by “piercing technology” within the ASI modules.
- The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).
