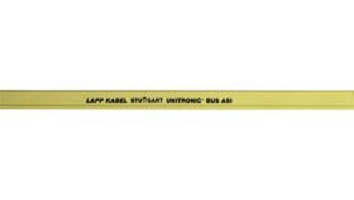

2170228 – UNITRONIC BUS ASI (G) 2X1,5 YELLOW

Description

Application Range

• Communication at sensor/actuator level
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• The TPE version has an oil-resistant outer sheath. It is suitable for wet areas, in particular in conjunction with water-soluble cooling lubricants.
• Sensor-/actuator wiring

Product Features

• Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
• The conductor is contacted by “piercing technology” within the ASI modules.
• The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).

Norm References / Approvals

• ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2.
• PVC A version with UL/CSA (CMX) certification
• UL/CSA version: CMG c(UL)us or (UL)CL2 or AWM 300V FT4 certified

Product Make-up

• Conductor: fine-wire tinned-copper strands
• Core insulation: blue and brown
• Outer sheath:rubber (G), halogenfreethermoplastic elastomers (TPE)PVC
• Outer sheath: yellow (RAL 1023), black (RAL 9005), red (RAL 3000)

Technical Data

• Article number: 2170228
• Article designation:
• Outer sheath colour: yellow
• Application:
• Number of cores and mm² per conductor: 2 x 1,5
• Copper index (kg/km): 29
• Weight (kg/km): 85
